Good Quality Silicone Button Rubber Keypad Testing Equipment Membrane Switch

Introducing, the latest innovation in keypad testing equipment - the Soushine’s Silicone Button Rubber Keypad Testing Equipment Membrane Switch. This state-of-the-art device is designed to ensure the highest quality and durability of silicone button rubber keypads for a wide range of electronic devices.

This testing equipment is perfect for manufacturers and suppliers looking to produce reliable and long-lasting membrane switches for products such as remote controls, medical devices, and industrial equipment. The Soushine’s Silicone Button Rubber Keypad Testing Equipment Membrane Switch is specifically designed to test the performance of silicone buttons, ensuring they can withstand frequent and repetitive use without losing their tactile feedback or functionality.

With its advanced technology and precise testing capabilities, this equipment allows for accurate evaluation of key parameters such as actuation force, contact resistance, and key travel distance. By using this testing equipment, manufacturers can identify any defects or inconsistencies in their keypad design before mass production, ensuring a high-quality end product that meets customer expectations.

The Soushine’s Silicone Button Rubber Keypad Testing Equipment Membrane Switch is easy to use and user-friendly, making it suitable for both experienced technicians and newcomers in the industry. Its compact size and intuitive interface allow for quick and efficient testing, saving time and resources in the production process.

In addition to its functionality, this testing equipment is built to last with its durable construction and high-quality materials. The Soushine brand is known for its reliability and innovation, and this keypad testing equipment is no exception. Rest assured that your investment in this product will pay off in the long run, as it is built to withstand years of rigorous use in a demanding manufacturing environment.

The Soushine’s Silicone Button Rubber Keypad Testing Equipment Membrane Switch is a must-have for any company looking to produce high-quality silicone button rubber keypads. With its advanced technology, ease of use, and durability, this testing equipment is sure to exceed your expectations and set a new standard in the industry. Upgrade your keypad testing process today with Soushine

Wholesale Price Matrix Membrane Smart Switch With Ied Waterproof  Panel Membrane Switch Keyboard

Get a Free Quotation via Us >>> Go

Products Description

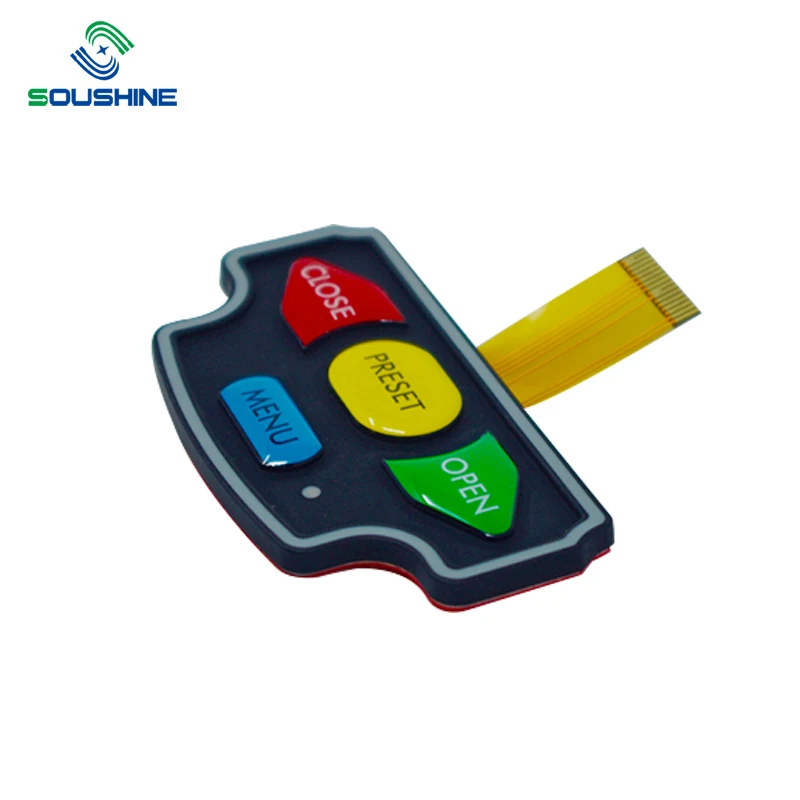

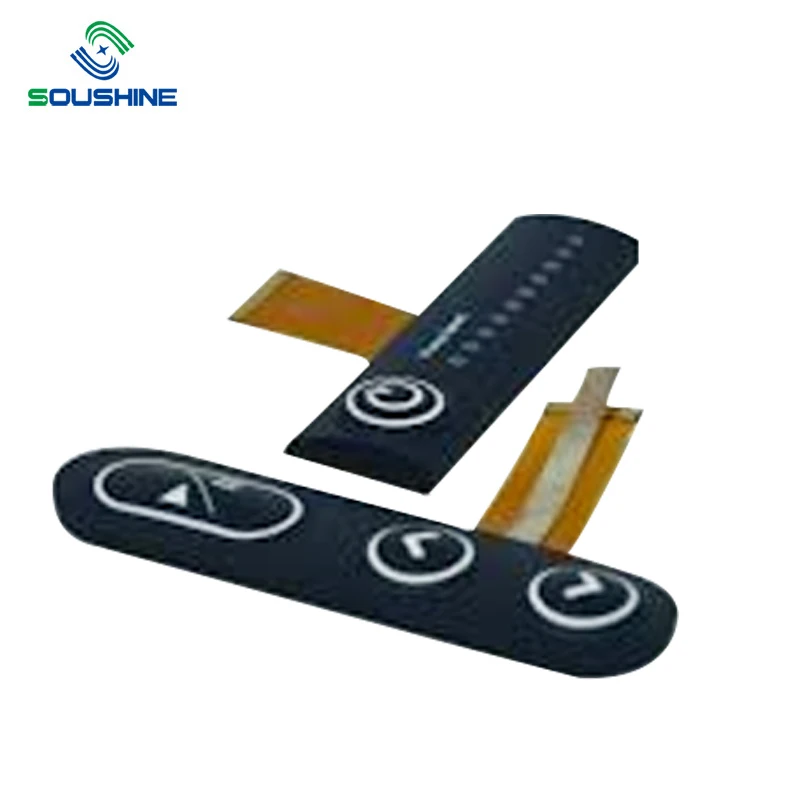

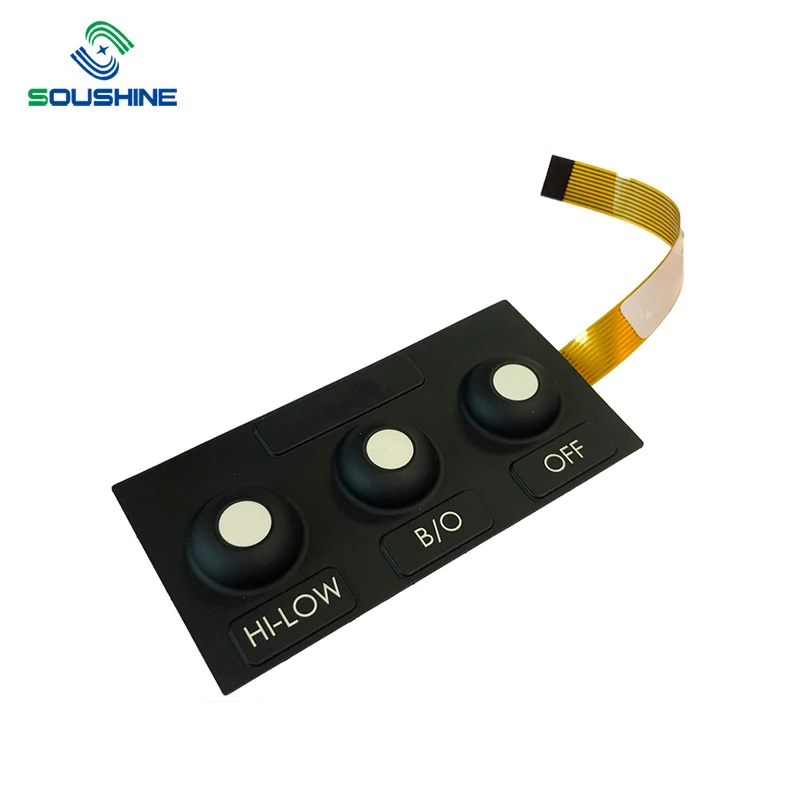

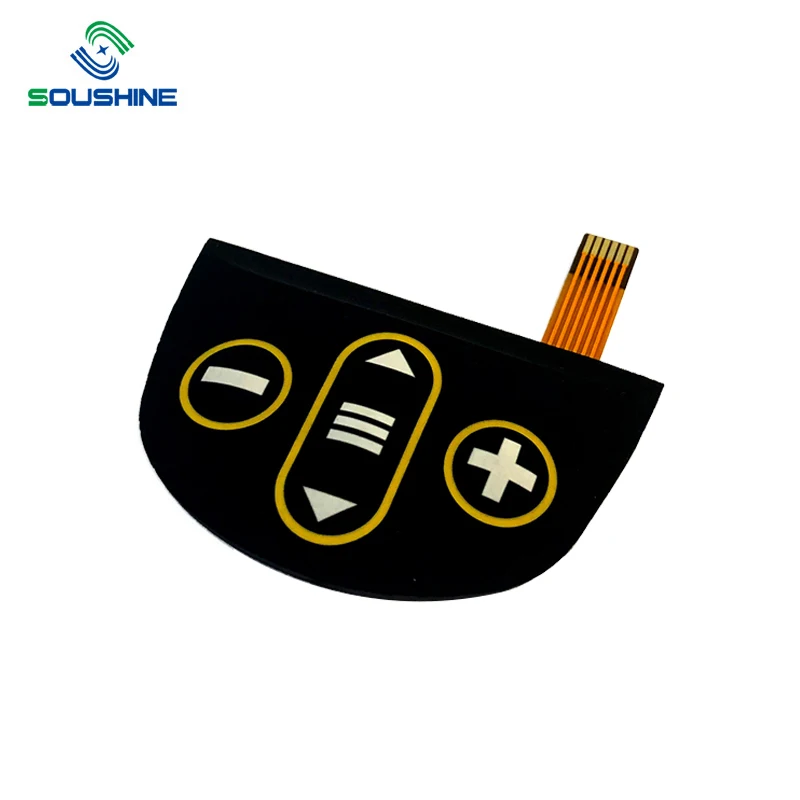

Membrane Switch With aluminum back support
Six layers: graphic overlay
Total thickness rang from 0.6-0.8mm

Overlay Material	PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format	CorelDraw, AI, CAD, CDR, PDF
Color	Pantone and RALcolor matching system
Button options	Tactile: metal dome, poly dome, silicone button
		Non-tactile: flat button, printed silver spot on the circuit
Connector	ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch
		Female connector with 2.54mmpitch
Circuit option	Silver printed conductive inks, FPC, PCB
Printing	Screen printing, Semi-Auto matic printing, Automatic Printing
Window	Transparent, translucent red/black/white etc window
Surface	Glossy surface or matte surface
Rear Adhesive	3M467,3M468, 3M9448MP, 3M300LSE, 3M93420 etc
Certificate	ISO9001、RoHS、CE、TUV

Get a Free Quotation via Us >>> Go

Circuit level	35V (DC), 100mA, 1W
Contact resistance	10 Ω~ 500 Ω - varies according to the length and material of outgoing
Insulation impedance	100M Ω 100V
Dielectric withstand voltage	No breakdown or flashover after 250V RMS (50-60Hz 1min) test
Contact jitter time	≤5ms
Service life	Plane type ≥5 million times
Touch type	≥1 million times
Operating pressure	Plane type 57~ 284g - 2 ~ 10oz
Tactile type	170-397g - 6-14oz
Switch stroke	Plane type 0.1~ 0.5mm

1、Cheap and cost-effective

2、Adjustable touch of buttons

3、Easy to clean and lightweight

4、The button can be used for glue dripping process

.

1、High temperature resistance

2. Waterproof and UV resistant

3. Long service life, good pressure resistance and anti breakdown

1、Adjustable touch of buttons

2、High lifespan

3、Laser with backlight effect

4、Imported raw materials and accessories

Recommend products

Company strength

About us

Established in 2008, Dongguan soushine Industrial Co., Ltd. is a technology company integrating design, research and development, production and sales. It covers an area of 4000 square meters and has two production workshops. After more than 20 years of development, we have a strong R & D technology and production capacity, the main products are: film switch, touch switch, film pressure sensor, graphic cover, panel and so on. These products are widely used in communication, industrial control, medical equipment, automobiles, instruments, smart home and toys, automatic control systems and other high-tech fields. Our partners are Haier, Midea, Huawei, Panasonic and other well-known enterprises. The company has more than 100 employees, more than 300 equipment, 10 production lines. And passed ISO9001:2015, RoHS, ZHB environmental system certification, is a national high-tech enterprise

FAQ

Q1. What information will I have to provide for price

A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files

Q2. What is the production time

(1) Custom sample: About 7 days

(2) Mass production: About 2--3 weeks

Q3. Can you do the design for us
Yes. There ate many professional engineer having rich experience in graphic overlays& circuit designing

Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face

Q4. How about your delivery time
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days. The specific delivery time depends on the items and the quantity of your order

Q5: How to control quality

A:

(1) We process the products strictly based on the raw material list.

(2) Our many engineer own many years experience and are very responsible.
(3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions

Q6: What's terms of payment for custom a new item
A: The mold cost should pay 100% in advanceThe bulk order we can accept 50% deposit, 50% before shipping and pay through Alibaba assurance order, T/T

Q7: Where is your factory, can I visit
A: We located in Dongguang, China. And welcome to visit any time
