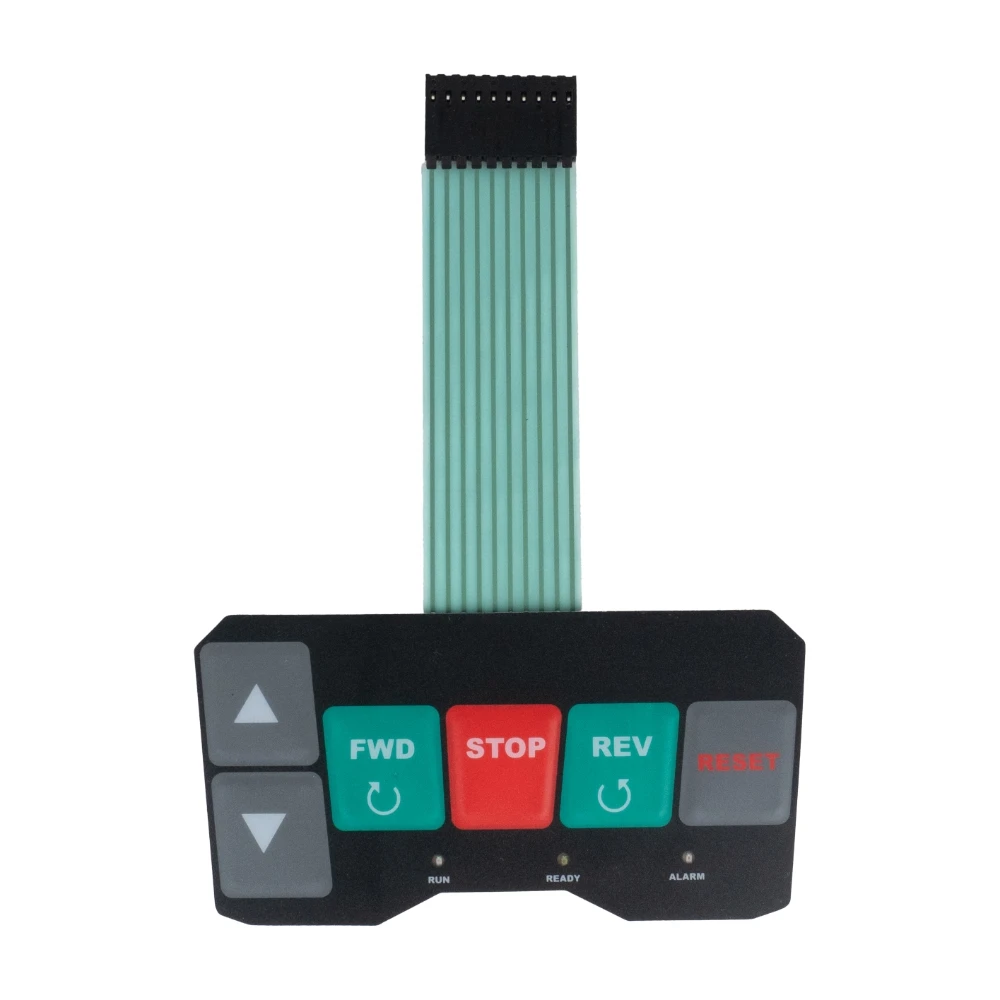

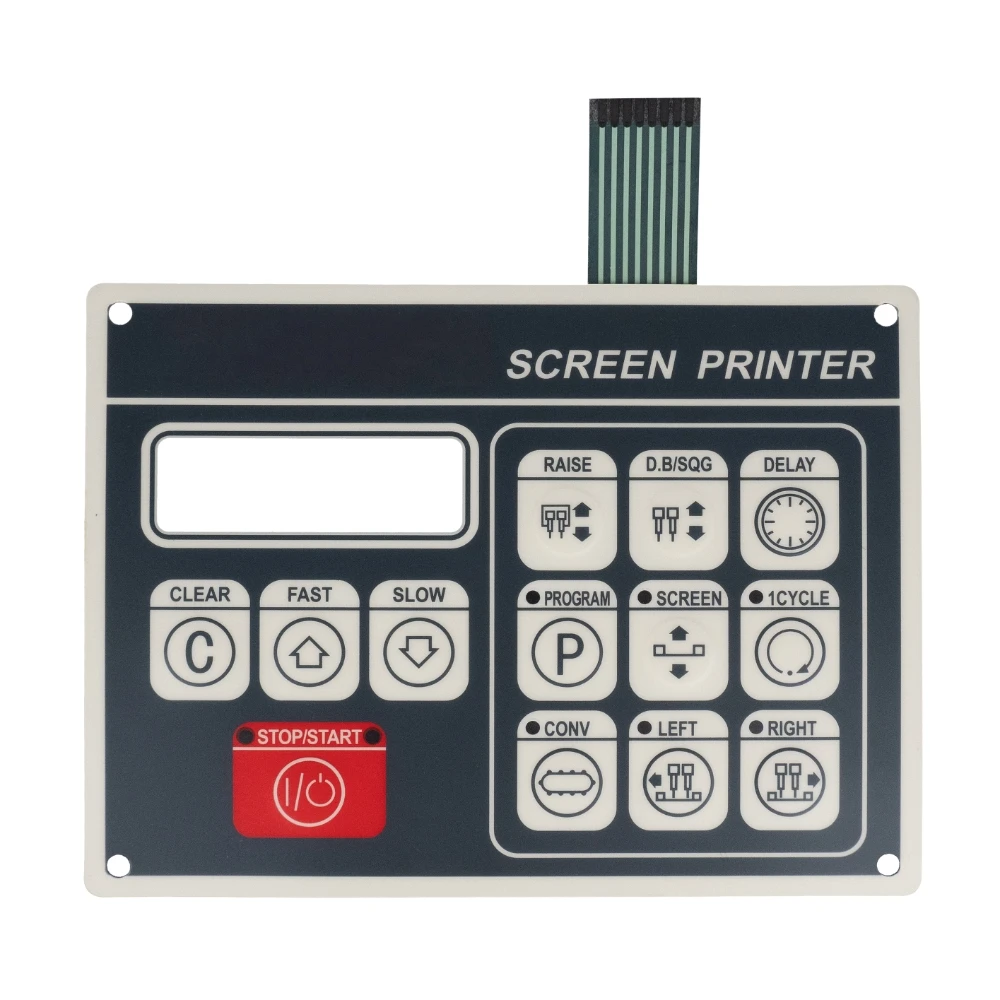

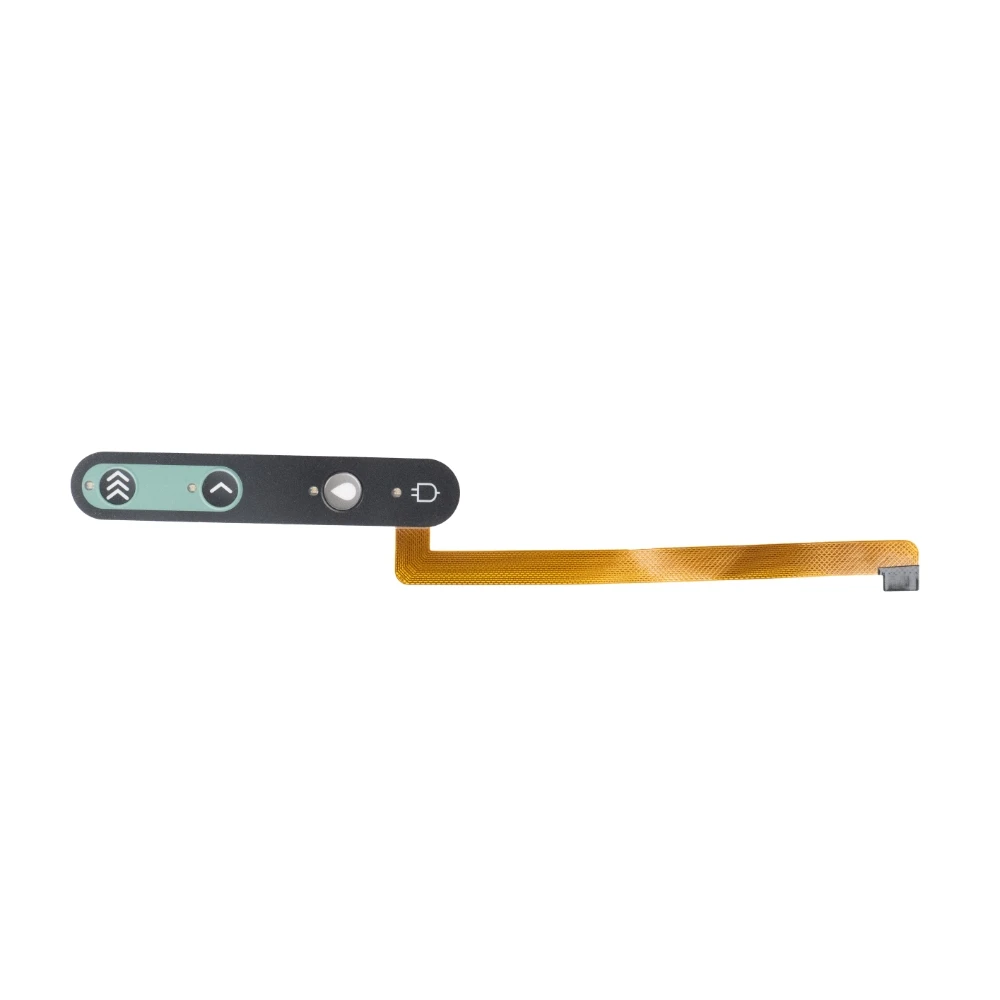

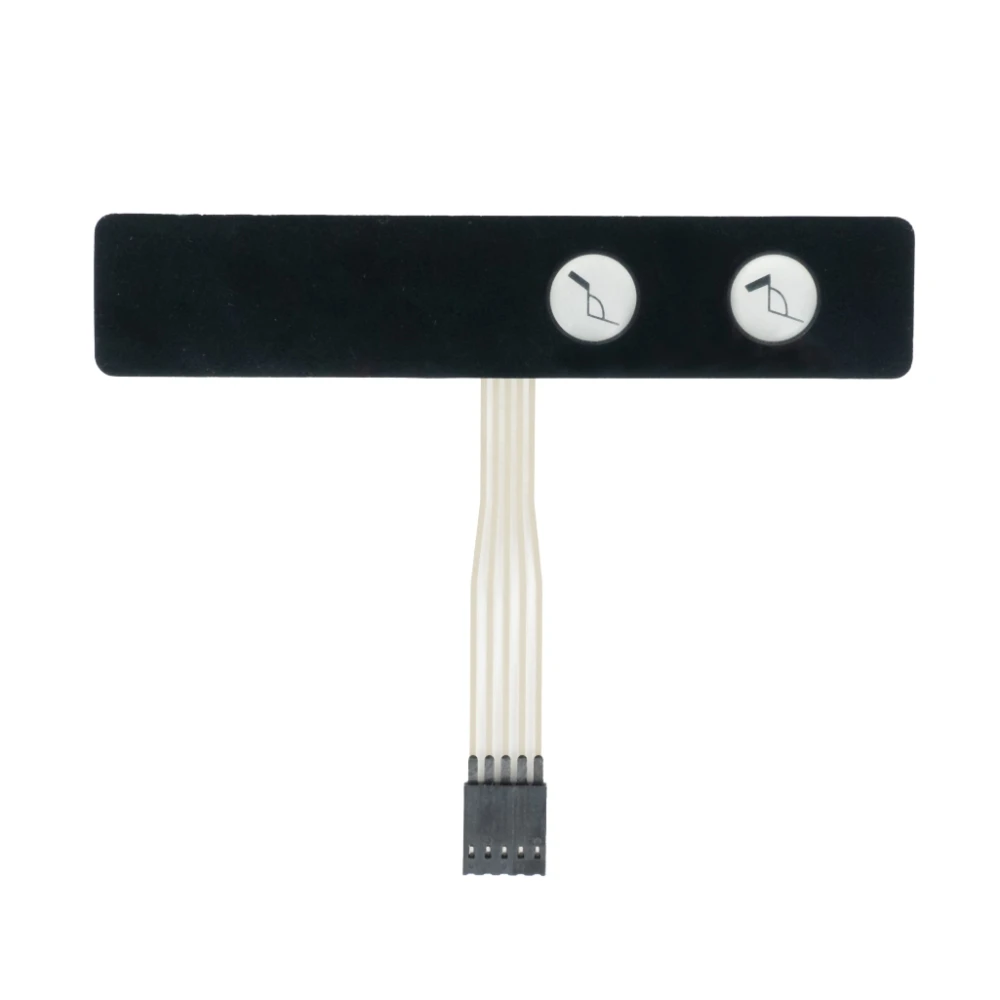

Golden Supplier's Custom Cheap China Wholesale Electronic Components PCB Membrane Switch Keypad Snap Dome

Introducing, the Soushine’s Custom Cheap China Wholesale Electronic Components PCB Membrane Switch Keypad Snap Dome, a high-quality product from our trusted Golden Supplier. This innovative and durable membrane switch keypad is designed to meet all your electronic component needs at an affordable price.

The Soushine’s membrane switch keypad features a sleek and modern design that is perfect for a wide range of electronic devices. With its customizable feature, you can choose from a variety of sizes, shapes, and colors to suit your specific requirements. The keypad is made from high-quality materials that ensure long-lasting durability and reliability.

One of the key features of the Soushine’s membrane switch keypad is its snap dome technology. This technology provides a responsive and tactile feedback, making it easy and comfortable to use. The snap dome also ensures that each key press is registered accurately, improving overall user experience.

Whether you are designing a new electronic product or upgrading an existing one, the Soushine’s membrane switch keypad is the ideal choice. It is compatible with a wide range of electronic devices, including medical devices, industrial equipment, and consumer electronics. Its versatility and compatibility make it a valuable addition to any project.

In addition to its functionality, the Soushine’s membrane switch keypad is also easy to install and maintain. Its simple design allows for quick and hassle-free installation, saving you time and effort. The keypad is also easy to clean and resistant to wear and tear, ensuring long-lasting performance.

When you choose the Soushine’s Custom Cheap China Wholesale Electronic Components PCB Membrane Switch Keypad Snap Dome, you can trust that you are getting a high-quality product from our Golden Supplier. With its affordable price and superior quality, this membrane switch keypad is a smart investment for any electronic project. Upgrade your electronic devices today with the Soushine’s membrane switch keypad and experience the difference it makes

Wholesale Price Matrix Membrane Smart Switch With Ied Waterproof  Panel Membrane Switch Keyboard

Get a Free Quotation via Us >>> Go

Products Description

Membrane Switch With aluminum back support
Six layers: graphic overlay
Total thickness rang from 0.6-0.8mm

Overlay Material	PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format	CorelDraw, AI, CAD, CDR, PDF
Color	Pantone and RALcolor matching system
Button options	Tactile: metal dome, poly dome, silicone button
		Non-tactile: flat button, printed silver spot on the circuit
Connector	ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch
		Female connector with 2.54mmpitch
Circuit option	Silver printed conductive inks, FPC, PCB
Printing	Screen printing, Semi-Auto matic printing, Automatic Printing
Window	Transparent, translucent red/black/white etc window
Surface	Glossy surface or matte surface
Rear Adhesive	3M467, 3M468, 3M9448MP, 3M300LSE, 3M93420 etc
Certificate	ISO9001、RoHS、CE、TUV

Get a Free Quotation via Us >>> Go

Circuit level	35V (DC), 100mA, 1W
Contact resistance	10 Ω~ 500 Ω - varies according to the length and material of outgoing
Insulation impedance	100M Ω 100V
Dielectric withstand voltage	No breakdown or flashover after 250V RMS (50-60Hz 1min) test
Contact jitter time	≤5ms
Service life	Plane type ≥5 million times
Touch type	≥1 million times
Operating pressure	Plane type 57~ 284g - 2 ~ 10oz
Tactile type	170-397g - 6-14oz
Switch stroke	Plane type 0.1~ 0.5mm

1、Cheap and cost-effective

2、Adjustable touch of buttons

3、Easy to clean and lightweight

4、The button can be used for glue dripping process

.

1、High temperature resistance

2. Waterproof and UV resistant

3. Long service life, good pressure resistance and anti breakdown

1、Adjustable touch of buttons

2、High lifespan

3、Laser with backlight effect

4、Imported raw materials and accessories

Recommend products

Company strength

About us

Established in 2008, Dongguan soushine Industrial Co., Ltd. is a technology company integrating design, research and development, production and sales. It covers an area of 4000 square meters and has two production workshops. After more than 20 years of development, we have a strong R & D technology and production capacity, the main products are: film switch, touch switch, film pressure sensor, graphic cover, panel and so on. These products are widely used in communication, industrial control, medical equipment, automobiles, instruments, smart home and toys, automatic control systems and other high-tech fields. Our partners are Haier, Midea, Huawei, Panasonic and other well-known enterprises. The company has more than 100 employees, more than 300 equipment, 10 production lines. And passed ISO9001:2015, RoHS, ZHB environmental system certification, is a national high-tech enterprise

FAQ

Q1. What information will I have to provide for price

A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files

Q2. What is the production time

(1) Custom sample: About 7 days

(2) Mass production: About 2--3 weeks

Q3. Can you do the design for us
Yes. There ate many professional engineer having rich experience in graphic overlays& circuit designing

Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face

Q4. How about your delivery time
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days. The specific delivery time depends on the items and the quantity of your order

Q5: How to control quality

A:

(1) We process the products strictly based on the raw material list.

(2) Our many engineer own many years experience and are very responsible.
(3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions

Q6: What's terms of payment for custom a new item
A: The mold cost should pay 100% in advanceThe bulk order we can accept 50% deposit, 50% before shipping and pay through Alibaba assurance order, T/T

Q7: Where is your factory, can I visit
A: We located in Dongguang, China. And welcome to visit any time.
