Introducing, the Soushine’s Customized Multi Port Electronic Flexible Printed Circuit Board (FPC)! This innovative product is the solution to all your electronic circuit needs.
Soushine has designed a cutting-edge FPC that is not only flexible but also customizable to fit your unique requirements. With multiple ports, this circuit board allows for easy connectivity between different electronic components, making it ideal for a wide range of applications.
The flexibility of the Soushine FPC allows for easy installation in spaces where traditional rigid circuit boards would not fit. Whether you need a circuit board that can bend or twist, the Soushine FPC can accommodate your needs.
The customization options offered by Soushine mean that you can have a circuit board that is tailored to your specific project. Whether you need a certain number of ports, a specific layout, or even a unique shape, Soushine can deliver a circuit board that meets your exact specifications.
With the Soushine’s Customized Multi Port Electronic Flexible Printed Circuit Board, you can be confident that your electronic devices will perform at their best. Whether you are designing a cutting-edge wearable device, a revolutionary medical instrument, or a complex industrial machine, the Soushine FPC is the perfect choice for your project.
Soushine is dedicated to providing high-quality electronic solutions that meet the needs of our customers. Our Customized Multi Port Electronic Flexible Printed Circuit Board is just one example of how we strive to innovate and exceed expectations.
Trust Soushine to deliver the customized electronic solutions you need. Contact us today to learn more about our Customized Multi Port Electronic Flexible Printed Circuit Board and how it can take your project to the next level

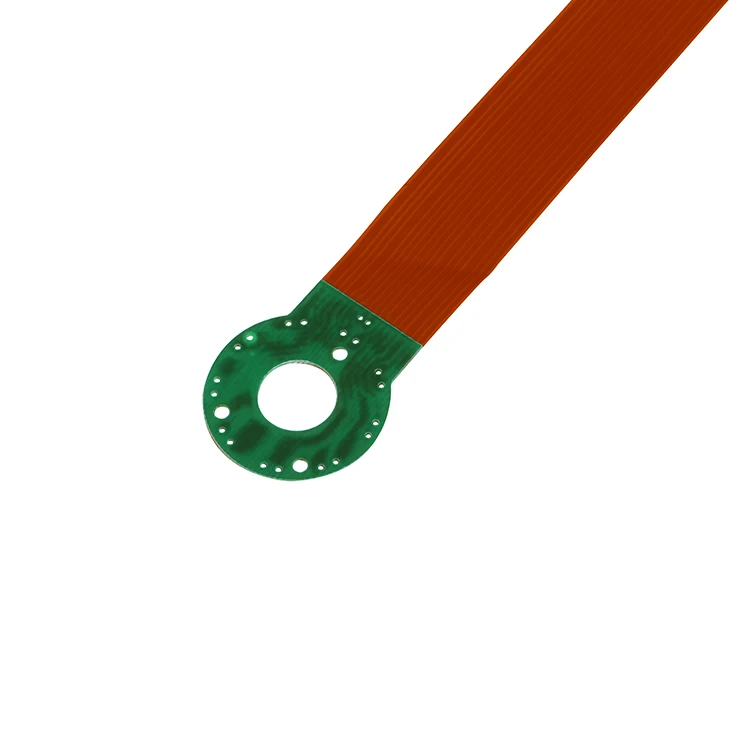

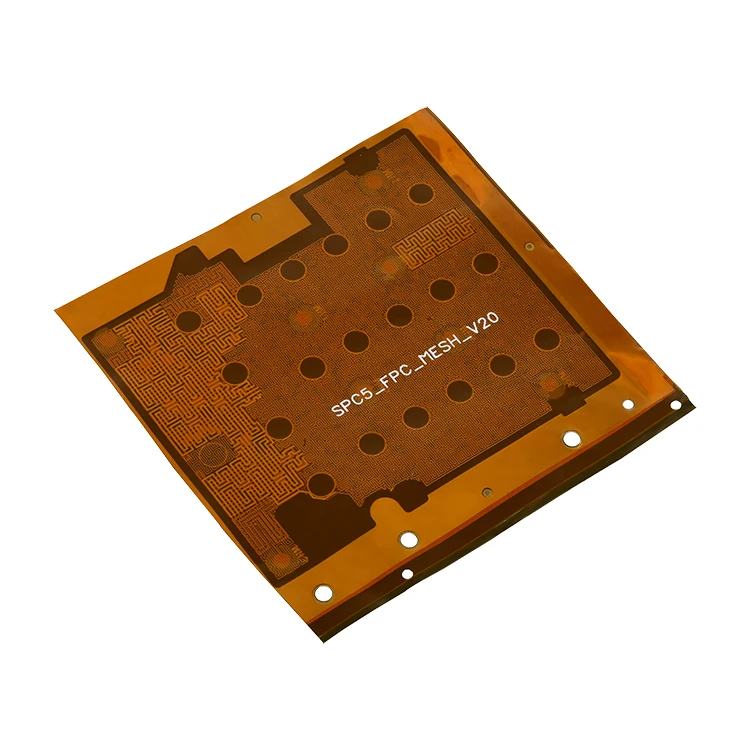

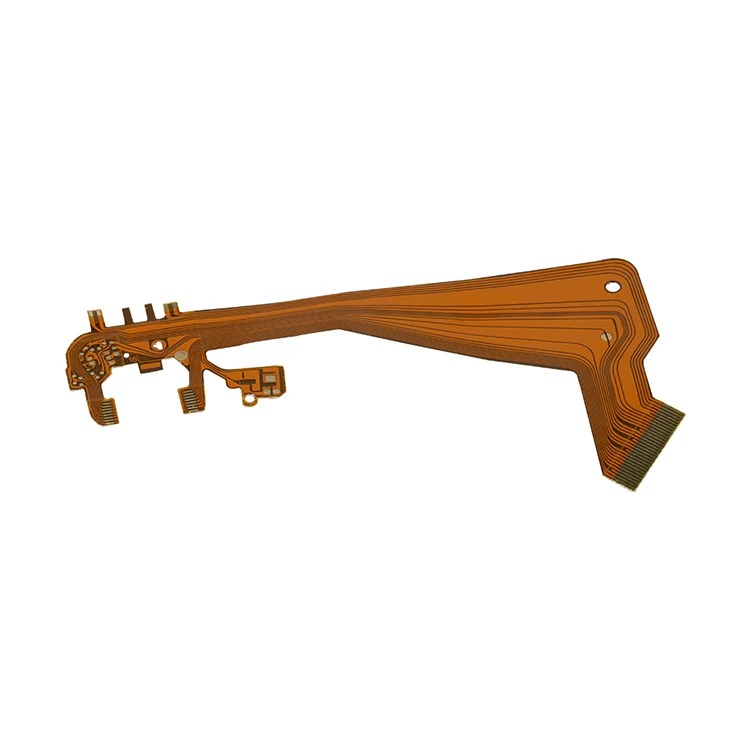

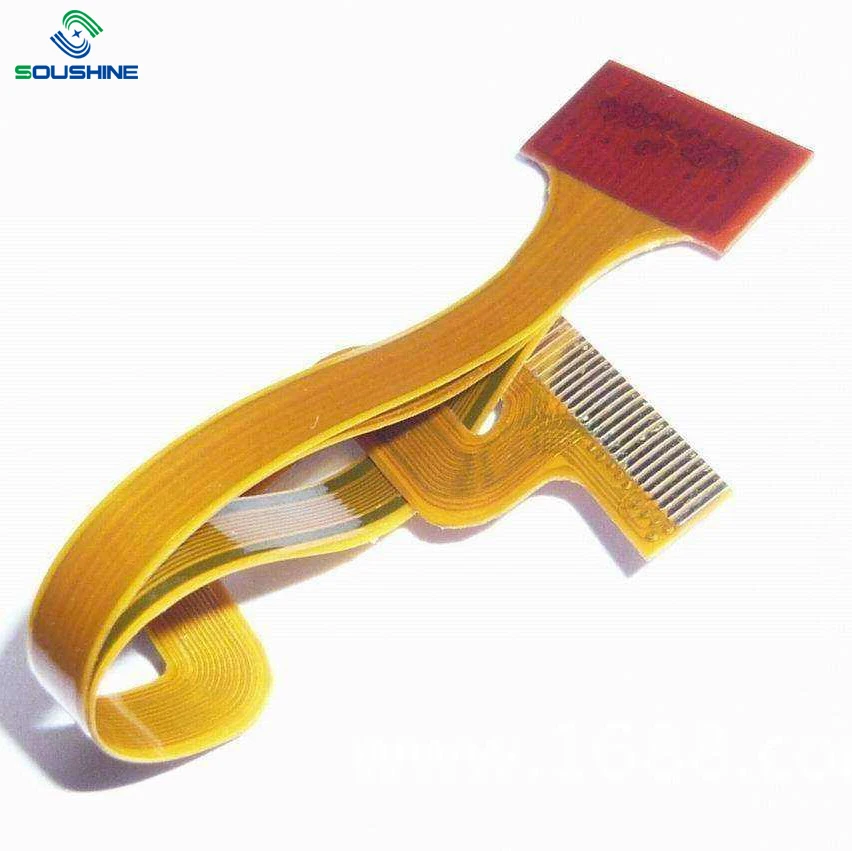

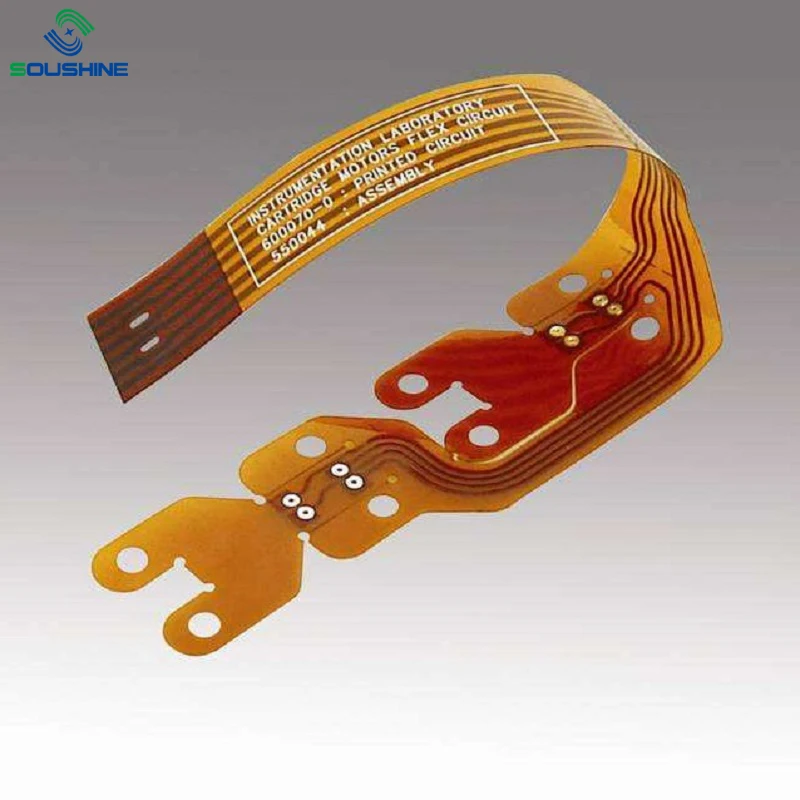

Customized Multi Port Electronic Flexible Printed Circuit Board FPC
All of our products are custom made from dimension, color, material requirment, cable length, tracks pitch, total thickness etc.
Also add special structure to make the products more attractive, like backlight, fluorescent etc.
Expect for getting your design idea, then we will work hard together to achieve it
| FPC Parameter | |||
| Material | Polyimide - Kapton | Polyester - PET | Remarks&Test Merhod |
| Number of Layer | 1-6 layer | 1-2 layer | |
| Min. Line Width/Min. Line Spacing | Single side | 0.075(3mil) | |
| Double side | 0.075 - 3mil | ||
| Min. Hole Diameter | Drilling - P.T.H | Ø 0.20mm | |
| Punching | Ø 0.5mm | ||
| Dimension Tolerance | Conducting Wire width(W) | ±0.03mm | W≤0.5mm |
| Hole Diameter(H) | ±0.05mm | H≤1.5mm | |
| Accumulated spacing | ±0.05mm | P≤25mm | |
| Outer Dimension(L) | ±0.05mm | L≤50mm | |
| Conducting Wire and Outer(C) | ±0.075mm |
C≤5.0mm | |
| Surface treatment | Ni(0.05-2um)/Au - 0.05-1.25) | ||
| Pb/Sn(2-20um) Primary flux | |||
| H.A.L(for polyimide only) | |||
| Chemical Ni(0.8-1.5um) | |||
| OSP | |||
| Insulation Resistance | 1000Ω | IPC-TM-650 2,5,3,2 at Ambient | |
| Dielectric Strength | 5KW | IPC-TM-650 2, 5, 6, 1 | |
| Surface Resistance | 5*1012 | 2*1012 | IPC-TM-650 2, 5, 1, 7 |
| Volume Resistance | 1*1015 | 1*1015 | IPC-TM-650 2, 5, 1, 7 |
| Dielectric Constant(1MHz) | 4.0 | 3.0 | MIL-P-55617 |
| Divergence Coefficient(1MHz) | 0.04 | 0.03 | MIL-P-55617 |
| Peeling Strength(180℃ Direction) | 1.0kg f/cm | 1.2kg f/cm | IPC-TM-650 2,4,9 |
| Welding strength | 300℃/10 secs | 210℃/10 secs | |
| Combustion assisting | 94 V-O | 94 V-O | UL94 |
