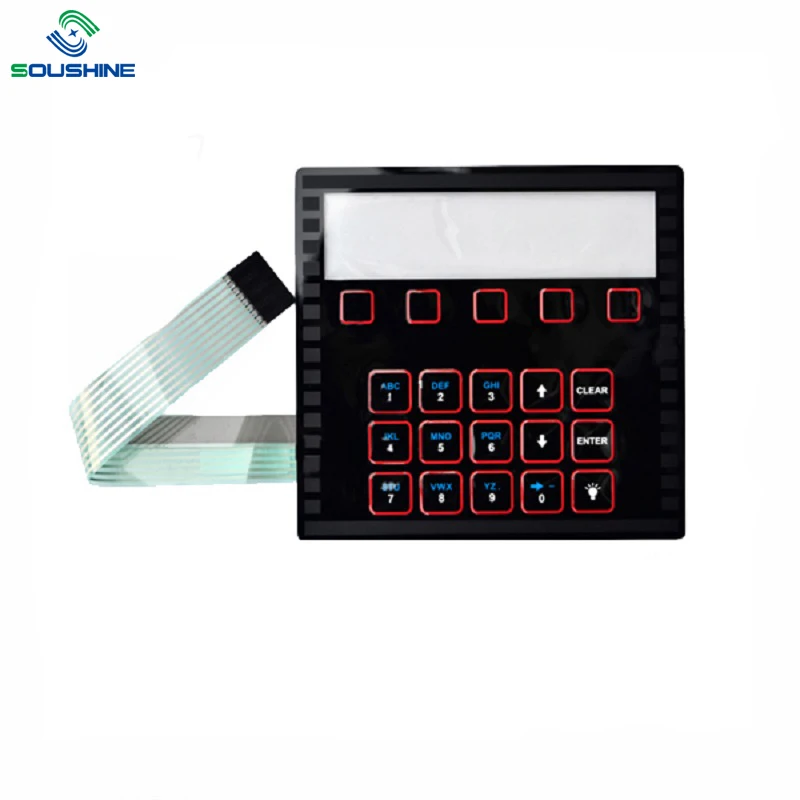

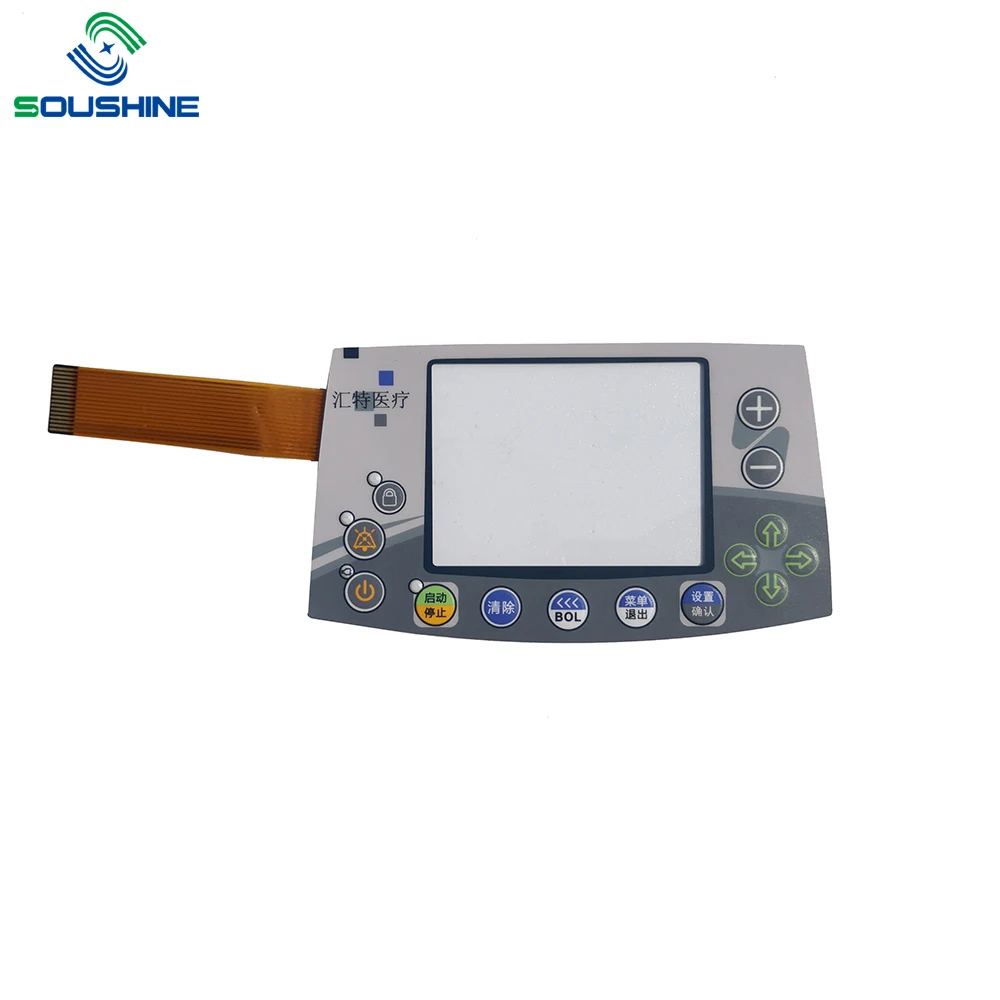

China Factory Custom Metal Dome Membrane Switch Keypad Home Appliance Telecommunication Equipment Button Keyboards Keypads

Introducing, the Soushine’s China Factory Custom Metal Dome Membrane Switch Keypad! This innovative product is perfect for home appliances and telecommunication equipment, providing high-quality button keyboards and keypads for all your needs.

Designed with durability and functionality in mind, this custom keypad is made with metal dome technology, ensuring a satisfying tactile response and long-lasting performance. The membrane switch design offers a sleek and seamless look, perfect for modern appliances and equipment.

Whether you're looking to upgrade your home appliances or enhance the efficiency of your telecommunication equipment, the Soushine’s Metal Dome Membrane Switch Keypad is the perfect solution. With customizable options available, you can create a keypad that meets your specific needs and specifications.

Not only is this keypad practical, but it also adds a touch of style to any device. The sleek design and quality materials make it a standout feature on any appliance or equipment. Plus, the keypad is easy to install and use, making it a convenient solution for any project.

When it comes to quality and performance, Soushine is a brand you can trust. With years of experience in the industry, Soushine is known for producing top-of-the-line keypads and keyboards that meet the highest standards of excellence. You can rely on the Soushine’s Metal Dome Membrane Switch Keypad to deliver reliable performance for years to come.

Upgrade your home appliances and telecommunication equipment with the Soushine’s China Factory Custom Metal Dome Membrane Switch Keypad. With its durable construction, customizable design, and sleek look, this keypad is the perfect solution for all your needs. Trust in the quality and performance of Soushine – your key to a better user experience

Wholesale Price Matrix Membrane Smart Switch With Ied Waterproof Panel Membrane Switch Keyboard

Get a Free Quotation via Us >>> Go

Products Description

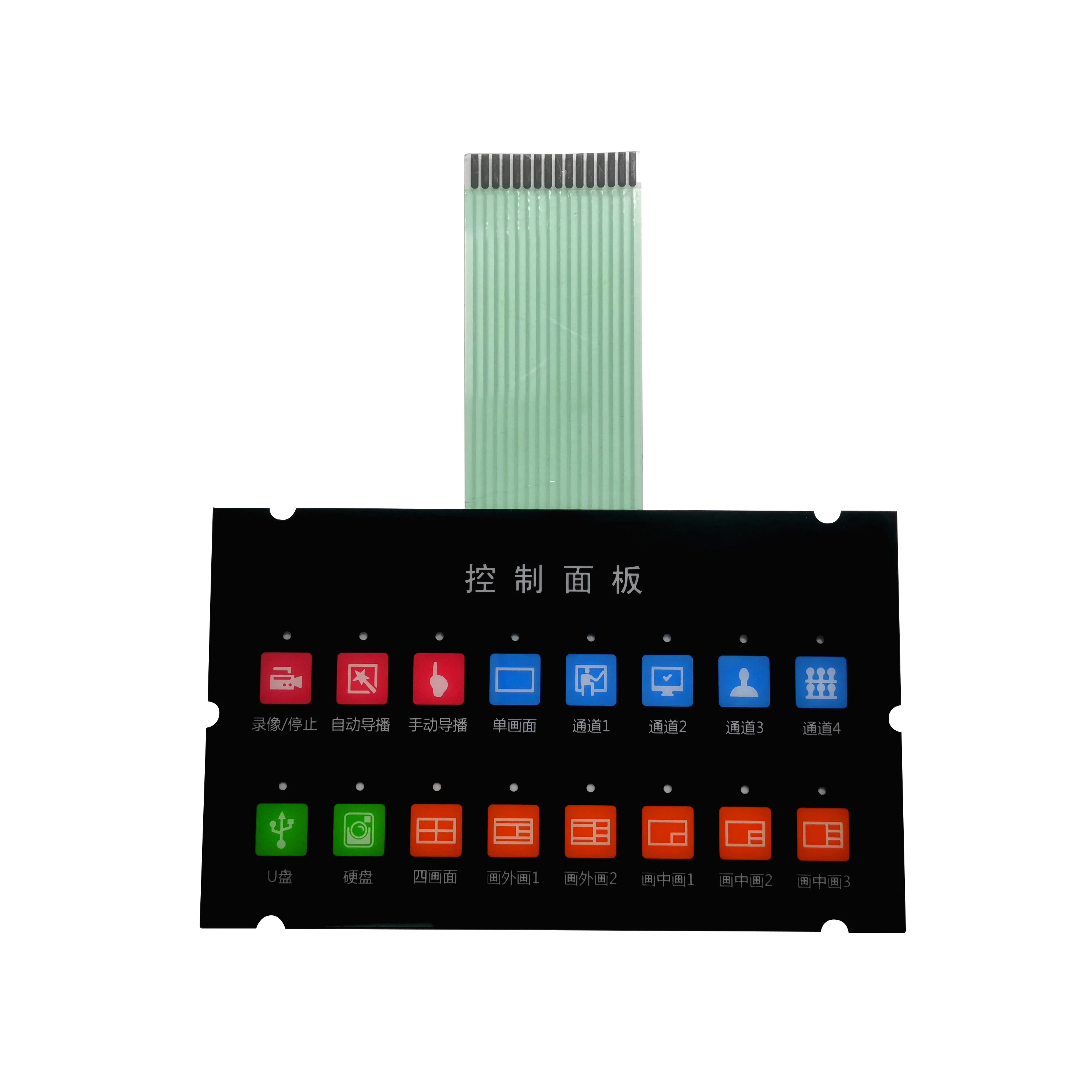

Membrane Switch With aluminum back support
Six layers: graphic overlay
Total thickness rang from 0.6-0.8mm

Overlay Material	PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format	CorelDraw, AI, CAD, CDR, PDF
Color	Pantone and RALcolor matching system
Button options	Tactile: metal dome, poly dome, silicone button
		Non-tactile: flat button, printed silver spot on the circuit
Connector	ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch
		Female connector with 2.54mmpitch
Circuit option	Silver printed conductive inks, FPC, PCB
Printing	Screen printing, Semi-Auto matic printing, Automatic Printing
Window	Transparent, translucent red/black/white etc window
Surface	Glossy surface or matte surface
Rear Adhesive	3M467, 3M468, 3M9448MP, 3M300LSE, 3M93420 etc
Certificate	ISO9001、RoHS、CE、TUV

Get a Free Quotation via Us >>> Go

Circuit level	35V (DC), 100mA, 1W
Contact resistance	10 Ω~ 500 Ω - varies according to the length and material of outgoing
Insulation impedance	100M Ω 100V
Dielectric withstand voltage	No breakdown or flashover after 250V RMS (50-60Hz 1min) test
Contact jitter time	≤5ms
Service life	Plane type ≥5 million times
Touch type	≥1 million times
Operating pressure	Plane type 57~ 284g - 2 ~ 10oz
Tactile type	170-397g - 6-14oz
Switch stroke	Plane type 0.1~ 0.5mm

1、Cheap and cost-effective

2、Adjustable touch of buttons

3、Easy to clean and lightweight

4、The button can be used for glue dripping process

.

1、High temperature resistance

2. Waterproof and UV resistant

3. Long service life, good pressure resistance and anti breakdown

1、Adjustable touch of buttons

2、High lifespan

3、Laser with backlight effect

4、Imported raw materials and accessories

Recommend products

Company strength

About us

Established in 2008, Dongguan soushine Industrial Co., Ltd. is a technology company integrating design, research and development, production and sales. It covers an area of 4000 square meters and has two production workshops. After more than 20 years of development, we have a strong R & D technology and production capacity, the main products are: film switch, touch switch, film pressure sensor, graphic cover, panel and so on. These products are widely used in communication, industrial control, medical equipment, automobiles, instruments, smart home and toys, automatic control systems and other high-tech fields. Our partners are Haier, Midea, Huawei, Panasonic and other well-known enterprises. The company has more than 100 employees, more than 300 equipment, 10 production lines. And passed ISO9001:2015, RoHS, ZHB environmental system certification, is a national high-tech enterprise

FAQ

Q1. What information will I have to provide for price

A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files

Q2. What is the production time

(1) Custom sample: About 7 days

(2) Mass production: About 2--3 weeks

Q3. Can you do the design for us
Yes. There ate many professional engineer having rich experience in graphic overlays& circuit designing
Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face

Q4. How about your delivery time
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days. The specific delivery time depends on the items and the quantity of your order
